BATTERY PACKS REPLACEMENTS
BMS BATTERY MANAGEMENT SYSTEM
Each Ammonite System battery pack is equipped with a BMS (Battery Management System) ensuring its safe operation. The system is necessary because the pack uses Li-Ion cells, which are very sensitive to overcharging, deep discharges, and short circuits.
The BMS provides additional benefits, including extending the life of the battery cells and maintaining a minimum safe level of charge.

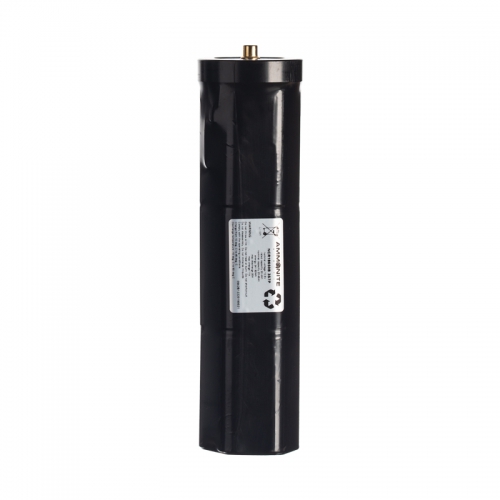

24AH BATTERY PACK
Nominal voltage: 10,9V
Nominal capacity: 23,5Ah
Nominal energy: 253,3Wh
Max. charge current: 11,2A
Max. discharge current: 20A

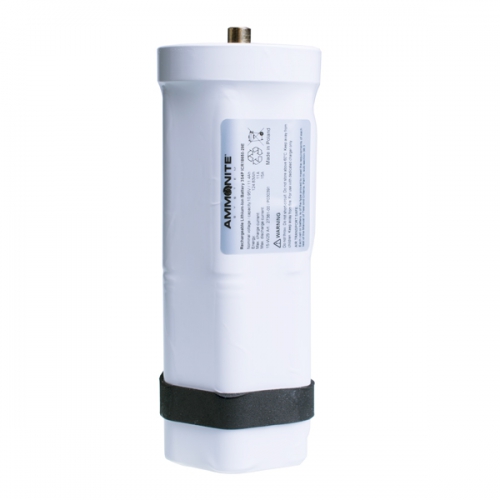

14AH BATTERY PACK
Nominal voltage: 10,9V
Nominal capacity: 13,4Ah
Nominal energy: 145,9Wh
Max. charge current: 6,5A
Max. discharge current: 20A

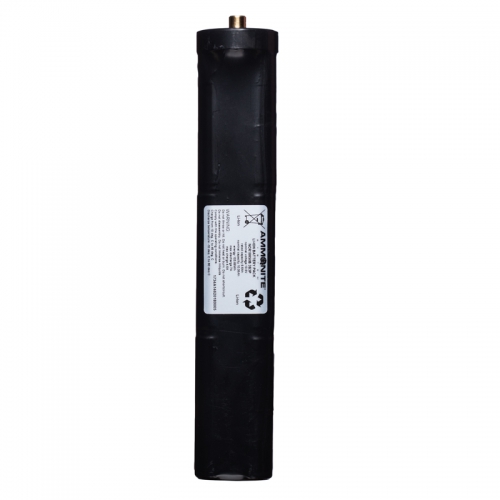

10AH BATTERY PACK
Nominal voltage: 10,8V
Nominal capacity: 10,1Ah
Nominal energy: 103,7Wh
Max. charge current: 4,5A
Max. discharge current: 7A

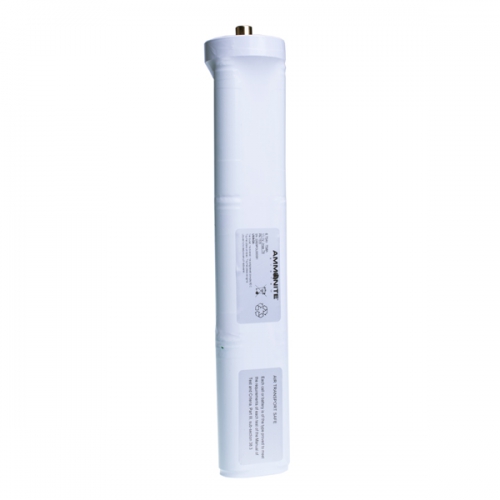

9AH BATTERY PACK
Nominal voltage: 11,1V
Nominal capacity: 8,7Ah
Nominal energy: 96Wh
Max. charge current: 4,5A
Max. discharge current: 7A
